Beam Angle
120°
IP
20
Life time
5 Years
Shape
Rectangular
CRI
>80/90
Power
20W~40W
Voltage
220~240V
Diffuser
Opal PMMA
Efficiency
Up to 170 lumen/Watt
from the light source
from the light source
Dimming
On/Off, DALI, Phase Cut, 0-10V, 1-10V
Body Material
Extruded aluminum
Finishing Colors
White
Black
Silver

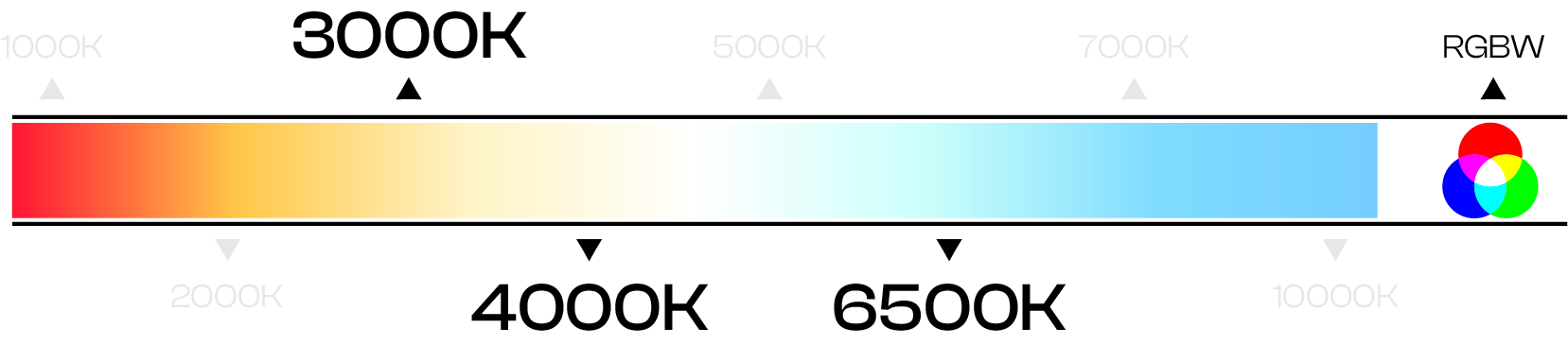

CCT Range

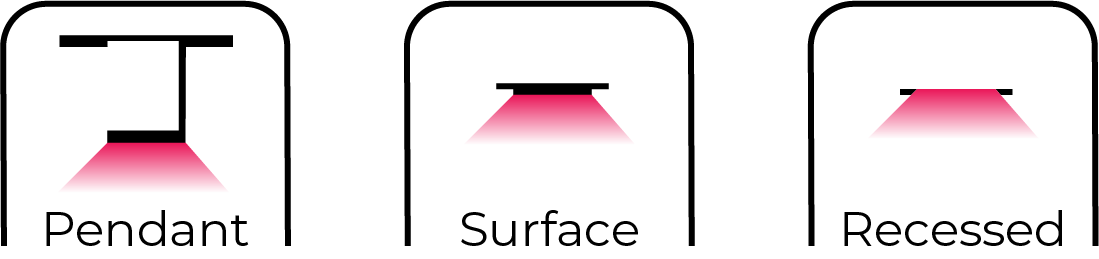

Mounting
Description
PETRA PTRL3 is a rigid curved LED luminaire designed to deliver precise circular lighting forms with uniform, glare-free illumination.
Ideal for
• Circular feature lighting in lobbies and reception areas
• Retail and commercial spaces requiring geometric lighting forms
• Hospitality and premium interior environments
• Atriums and large open spaces
• Showrooms and exhibition areas
• Architectural ceiling compositions with defined circular
patterns
Key Feature
Dimensions and Power
| ITEM | Dimension | Diameter (mm) | Power (Watt) | Driver Location |
|---|---|---|---|---|
| PRF-PTRL3-5075D600 | 50mm X75mm | 600 | 20W~40W | Internal |
| PRF-PTRL3-5075D800 | 50mm X75mm | 800 | 20W~40W | Internal |
| PRF-PTRL3-5075D1000 | 50mm X75mm | 1000 | 20W~40W | Internal |
| PRF-PTRL3-5075D1200 | 50mm X75mm | 1200 | 20W~40W | Internal |
| PRF-PTRL3-5075D1500 | 50mm X75mm | 1500 | 20W~40W | Internal |
| PRF-PTRL3-5075D2000 | 50mm X75mm | 2000 | 20W~40W | Internal |
ITEM
PRF-PTRL3-5075D600
Dimension50mm X75mm
Diameter (mm)600
Power (Watt)20W~40W
Driver LocationInternal
ITEM
PRF-PTRL3-5075D800
Dimension50mm X75mm
Diameter (mm)800
Power (Watt)20W~40W
Driver LocationInternal
ITEM
PRF-PTRL3-5075D1000
Dimension50mm X75mm
Diameter (mm)1000
Power (Watt)20W~40W
Driver LocationInternal
ITEM
PRF-PTRL3-5075D1200
Dimension50mm X75mm
Diameter (mm)1200
Power (Watt)20W~40W
Driver LocationInternal
ITEM
PRF-PTRL3-5075D1500
Dimension50mm X75mm
Diameter (mm)1500
Power (Watt)20W~40W
Driver LocationInternal
ITEM
PRF-PTRL3-5075D2000
Dimension50mm X75mm
Diameter (mm)2000
Power (Watt)20W~40W
Driver LocationInternal
