GLDL3

Front Bend Linear Light

Beam Angle

120°

20

Life time

5 Years

Shape

Rectangular

CRI

>80/90

Indicative Intensity Distribution Curve Linear Light 40 mm | Opal PMMA | 120° Beam 0°

ـــــــــــ C0-C180 —- C90-C270

Power

20W~40W

Voltage

220~240V

Diffuser

Opal PMMA

Efficiency

Up to 170 lumen/Watt
from the light source

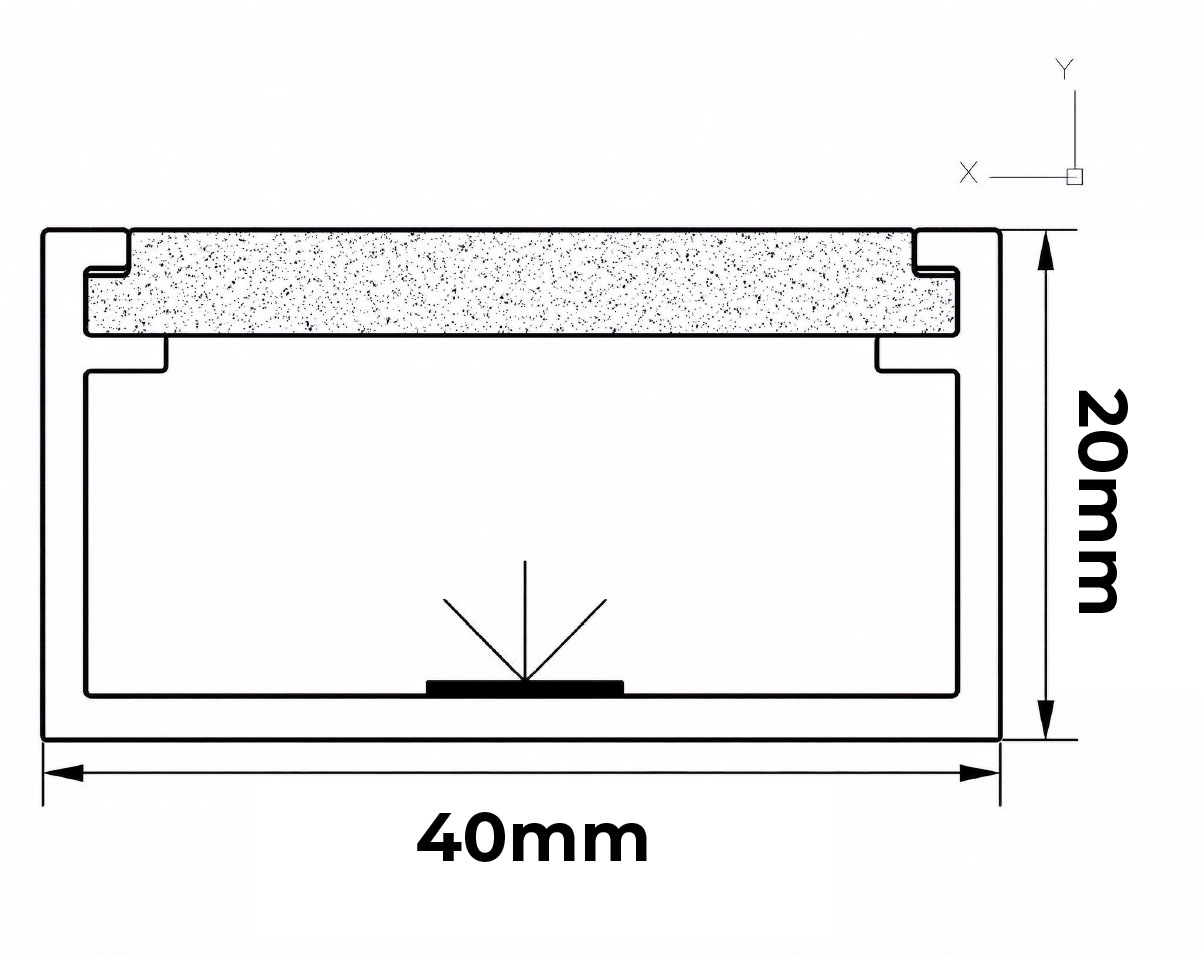

Dimension

40mm X 20mm

Thickness

3mm

Dimming

On/Off, DALI, Phase Cut, 0-10V, 1-10V

Body Material

Extruded aluminum

Finishing Colors

White

Black

Silver

Mounting

CCT Range

Description

GLDL3 is a front-bendable linear LED luminaire engineered to create smooth vertical curves, flowing wave patterns, and continuous architectural lighting forms.

Ideal for

• wave ceilings and flowing geometries
• Feature ceilings and wave lighting concepts
• Hospitality and luxury interiors
• Retail and commercial feature zones
• Offices and collaborative spaces
• Decorative suspended installations

Key Feature

• Front-bend flexibility
enabling organic curves and sculptural lighting forms
• Slim aluminum Profile
(40mm × 20mm) for minimal visual impact
• Compatible with
multiple dimming systems (DALI, 10–0V, Phase Cut)
• Customizable shapes:
waves, loops, curves, and feature installations
