NOVA

Anti-Glare Deep Recessed Downlight

15W
Cut-out75 mm
DiameterØ83 mm
Height65 mm
22W
Cut-out95 mm
DiameterØ103 mm
Height70 mm
30W
Cut-out120 mm
DiameterØ132 mm
Height75 mm
40W
Cut-out145 mm
DiameterØ160 mm
Height80 mm
45-50W
Cut-out165 mm
DiameterØ180 mm
Height85 mm
Power
15W
22W
30W
40W
45-50W
Cut-out
75 mm
95 mm
120 mm
145 mm
165 mm
Diameter
Ø83 mm
Ø103 mm
Ø132 mm
Ø160 mm
Ø180 mm
Height
65 mm
70 mm
75 mm
80 mm
85 mm
LED Type
COB (TCI / Samsung) / SMD (Osram)
Luminous Efficiency
135–170 lm/W
Body Material
Die-cast aluminum
Finish
Matte White / Matte Black
IP Rating
IP65
Lifetime
50,000 hours
Warranty
5 Years
CRI
90
Beam Angle
36° / 60°
Input Voltage
220-240V AC
CCT Range

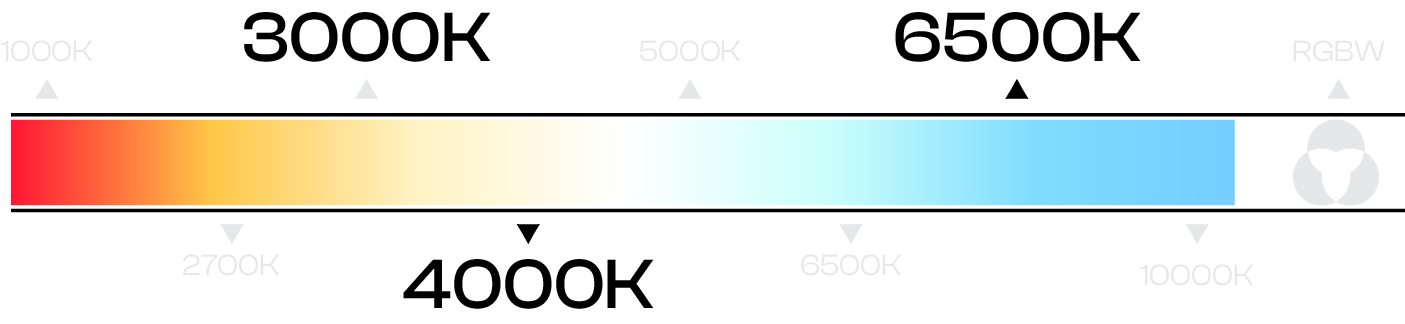

Nova downlight colour temperature (CCT) options
Driver Compatibility
TCI LED driver logoTridonic LED driver logoPhilips LED driver logo

Description

High-performance architectural recessed downlight designed with deep anti-glare optics, high efficiency, and robust thermal management. Suitable for commercial, residential, and semi-outdoor environments requiring IP65 protection.

Applications

• Commercial spaces
• Retail environments
• Hospitality projects
• Residential interiors
• Bathrooms and wet areas
• Covered outdoor areas
• Corridors and lobbies

Key Feature

  • • Deep recessed anti-glare

    optical design for enhanced visual comfort

  • • 5-year warranty

    ensuring long-term reliability

  • • Flexible configuration

    in beam control, color temperature, CRI, and dimming systems

  • • Wide adaptability

    for multiple applications including indoor and semi-outdoor (IP65 front protection)

  • • Modular configuration platform

    allowing customization of light source, output, and control systems

  • • Dual LED technology options (COB / SMD)

    to match project performance and budget requirements

  • • Compatible with leading European

    driver systems for integration into professional lighting controls

  • • High thermal performance design

    ensuring stable output and long lifespan
