Beam Angle
120°
IP
20
Life time
50,000 Hours
Diffuser
Opal - PMMA
CRI
90
Technical Specifications
Available Configurations
Accessories
Installation & Safety
1. Ensure mounting surface is clean and level. 2. Fix mounting clips according to profile length. 3. Install aluminum profile securely. 4. Connect compatible 24V driver before powering ON. 5. Insert strip light carefully inside profile channel. 6. Install diffuser and end caps after testing. 7. Indoor use only unless specified otherwise.
Strip Light Compatibility
Description
Rigid linear strip light system for surface or suspended installation with seamless indirect and architectural illumination.
Ideal Applications
• Shelf and cabinet illumination
• Cove and indirect ceiling lighting
• Kitchen under-cabinet lighting
• Architectural wall details and shadow gaps
• Hospitality and residential decorative lighting
• Retail display shelving and showcase lighting
• Corridor and circulation lighting accents
Key Feature
Dimension and Capacity

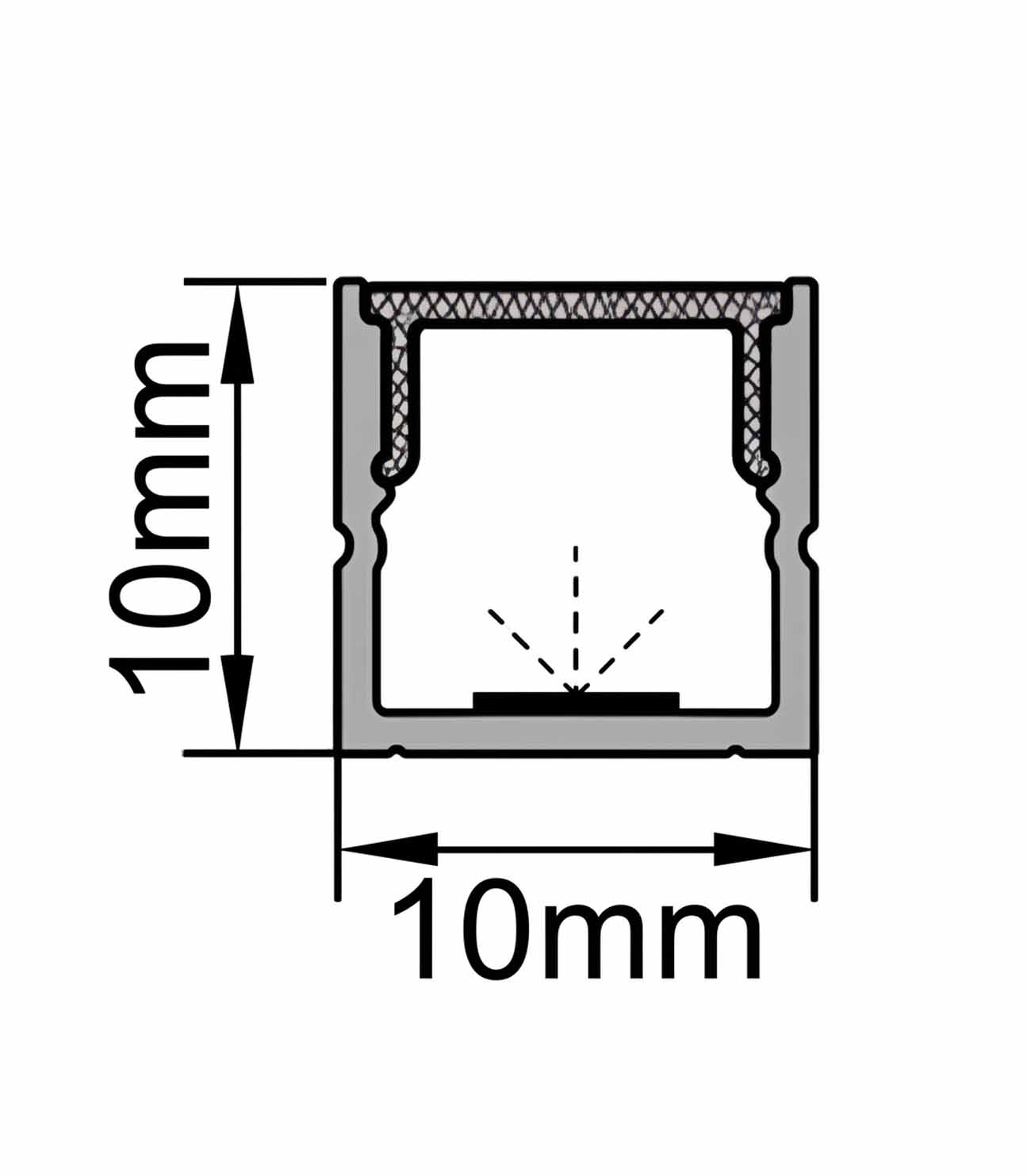

|Dimensions (mm)
10 X 10
|Power (Watt)
4.8W ~ 19.6W

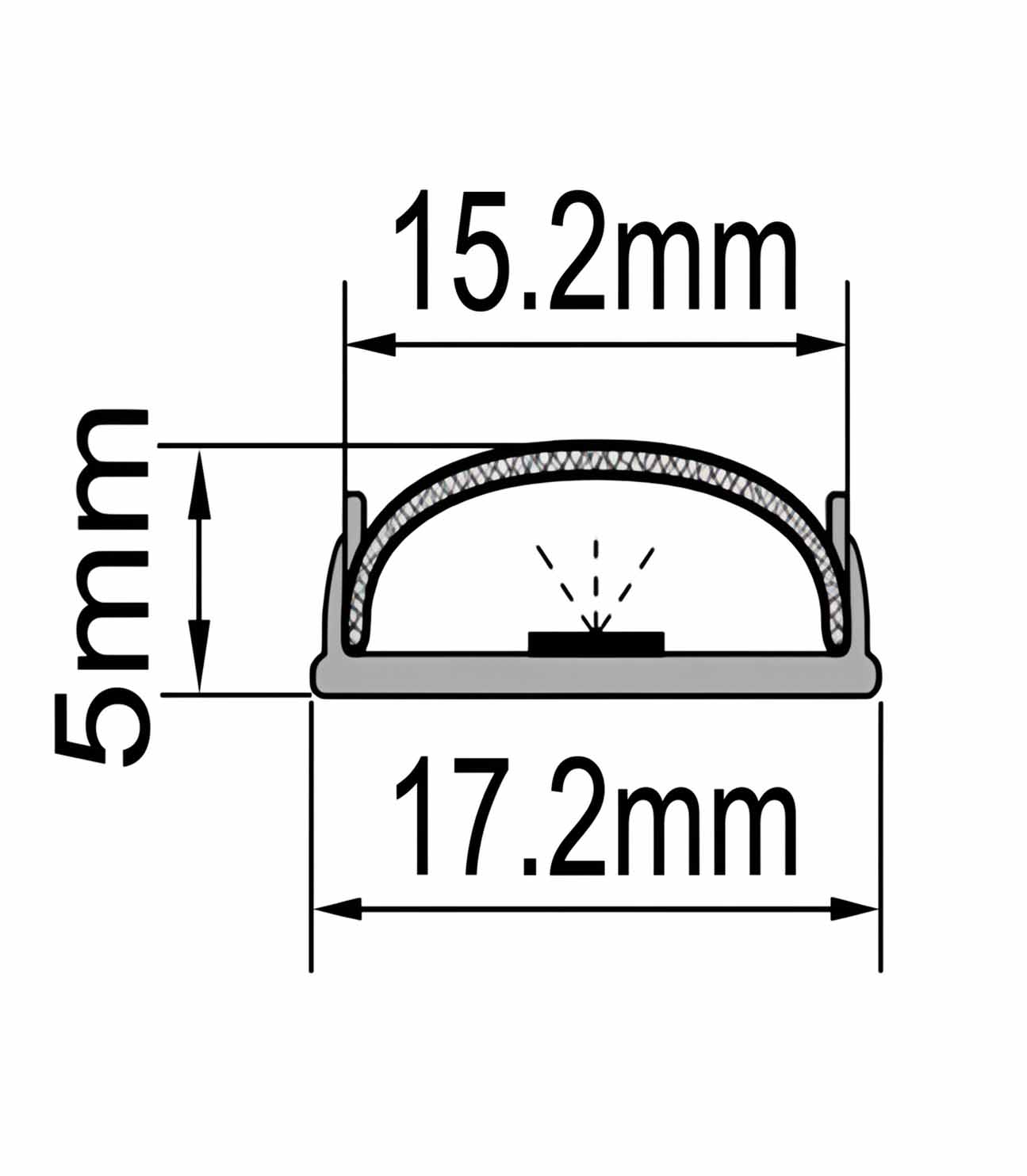

|Dimensions (mm)
15.2 X 5
|Power (Watt)
4.8W ~ 19.6W

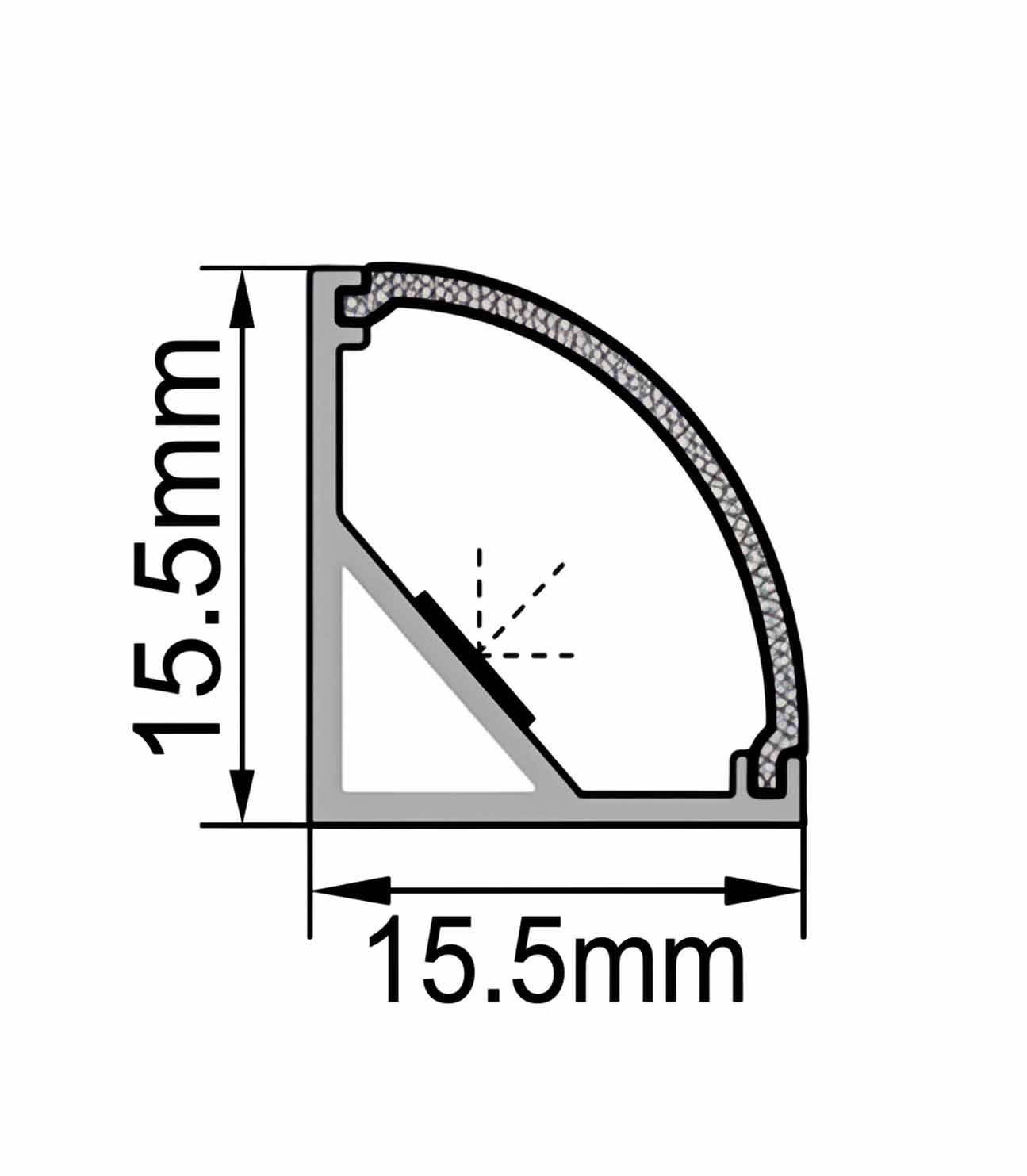

|Dimensions (mm)
15.5 X 15.5
|Power (Watt)
4.8W ~ 19.6W

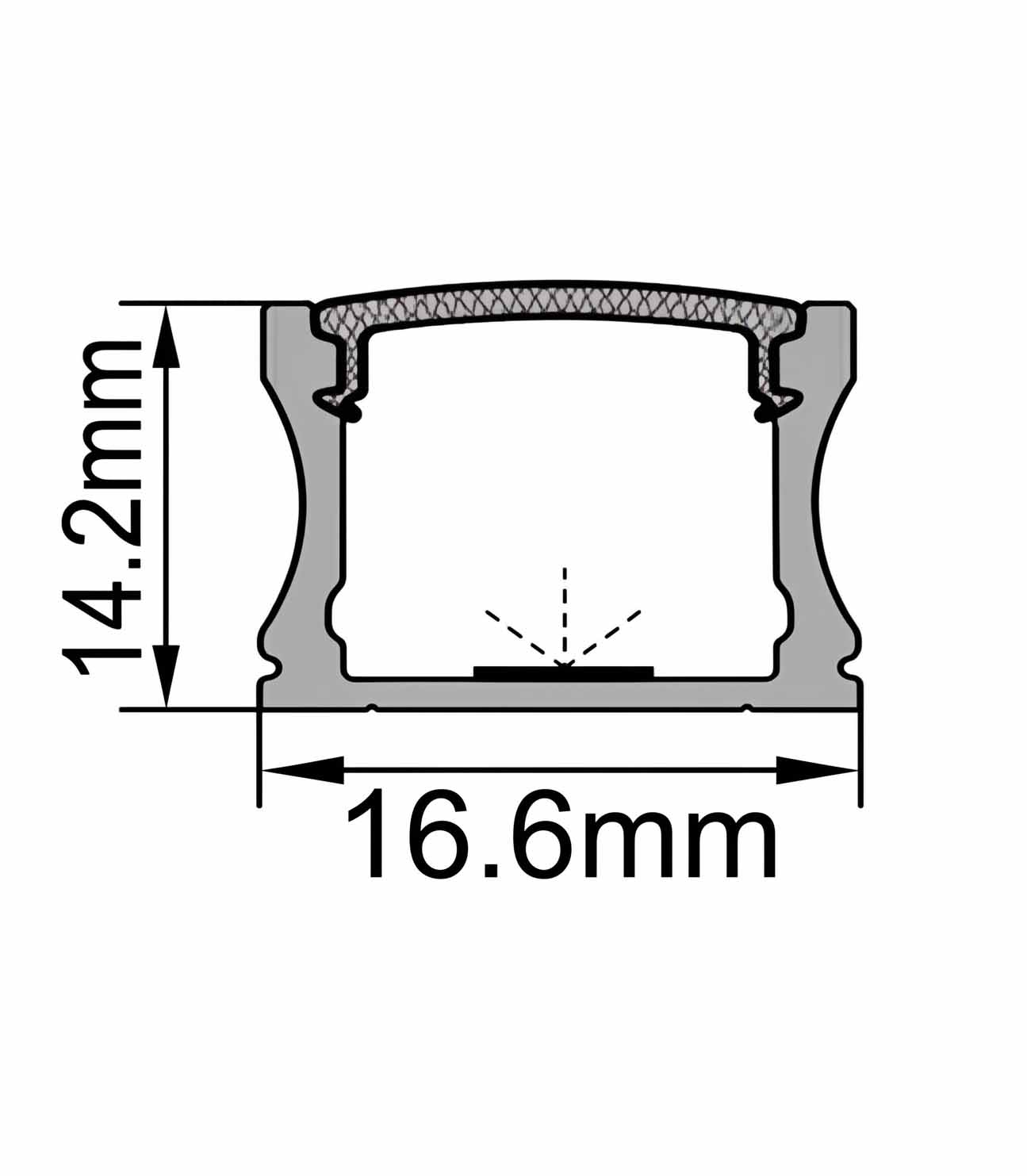

|Dimensions (mm)
16.6 X 14.2
|Power (Watt)
4.8W ~ 19.6W

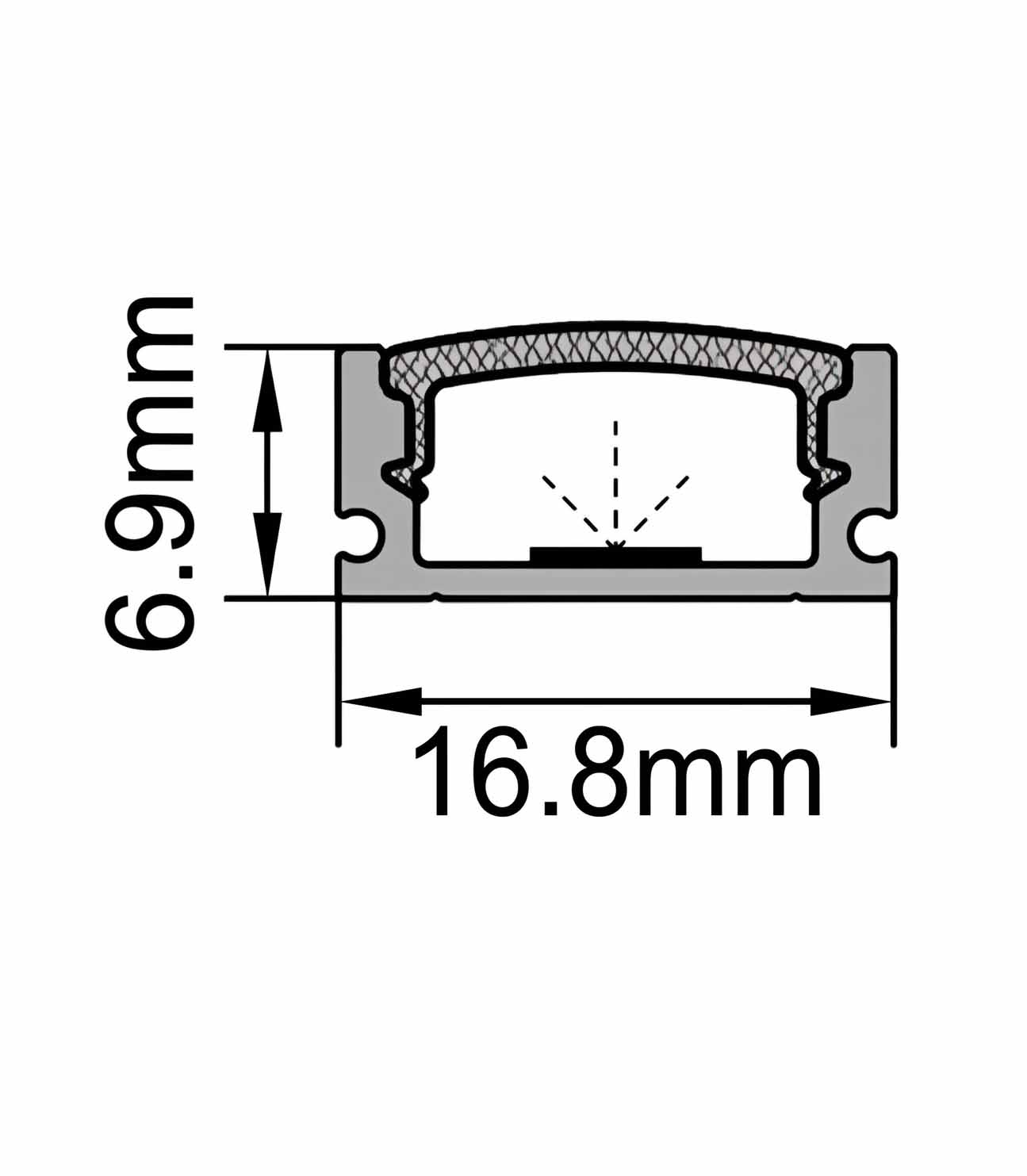

|Dimensions (mm)
16.8 X 6.9
|Power (Watt)
4.8W ~ 19.6W

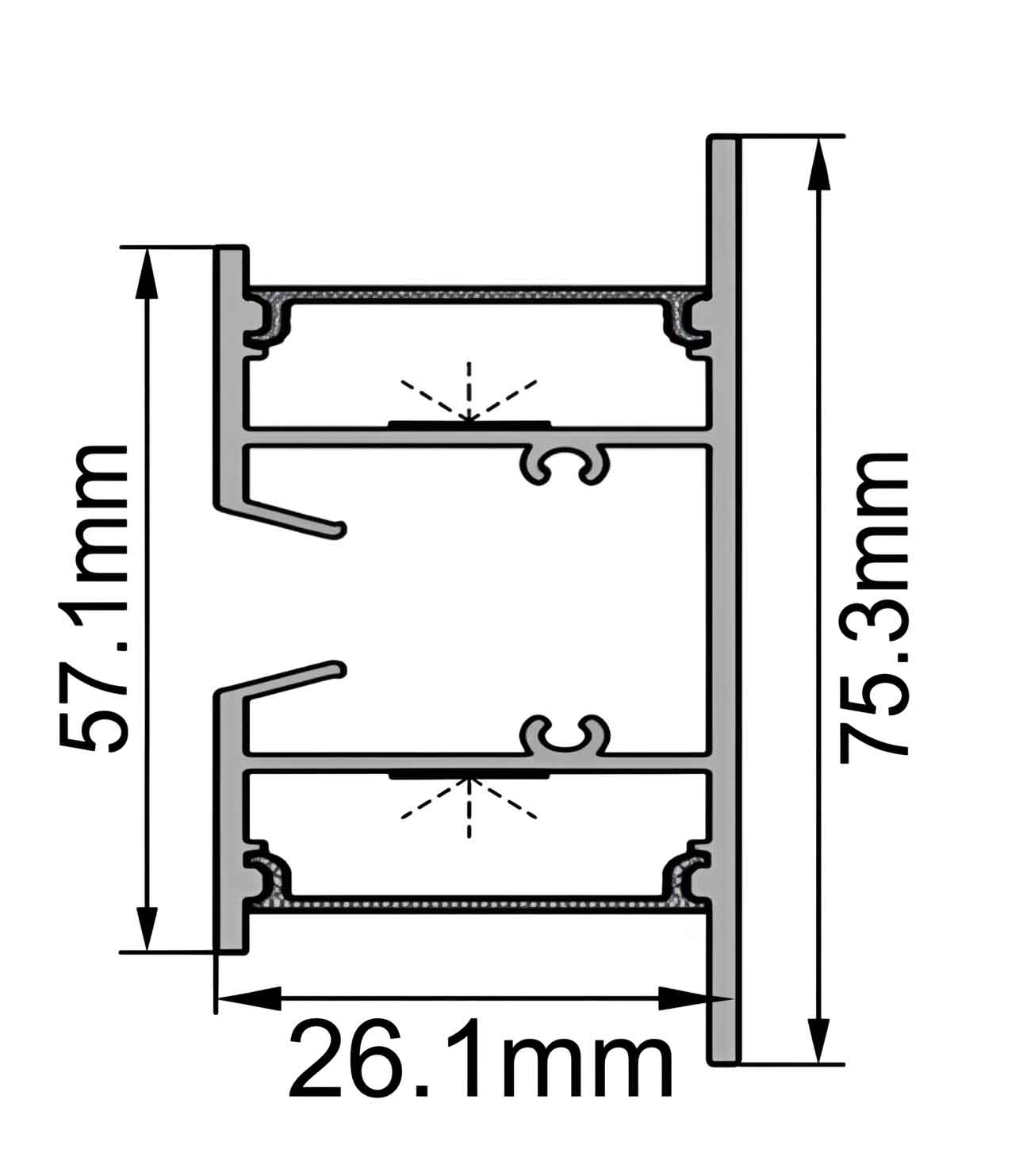

|Dimensions (mm)
26.1 X 57.1
|Power (Watt)
4.8W ~ 19.6W

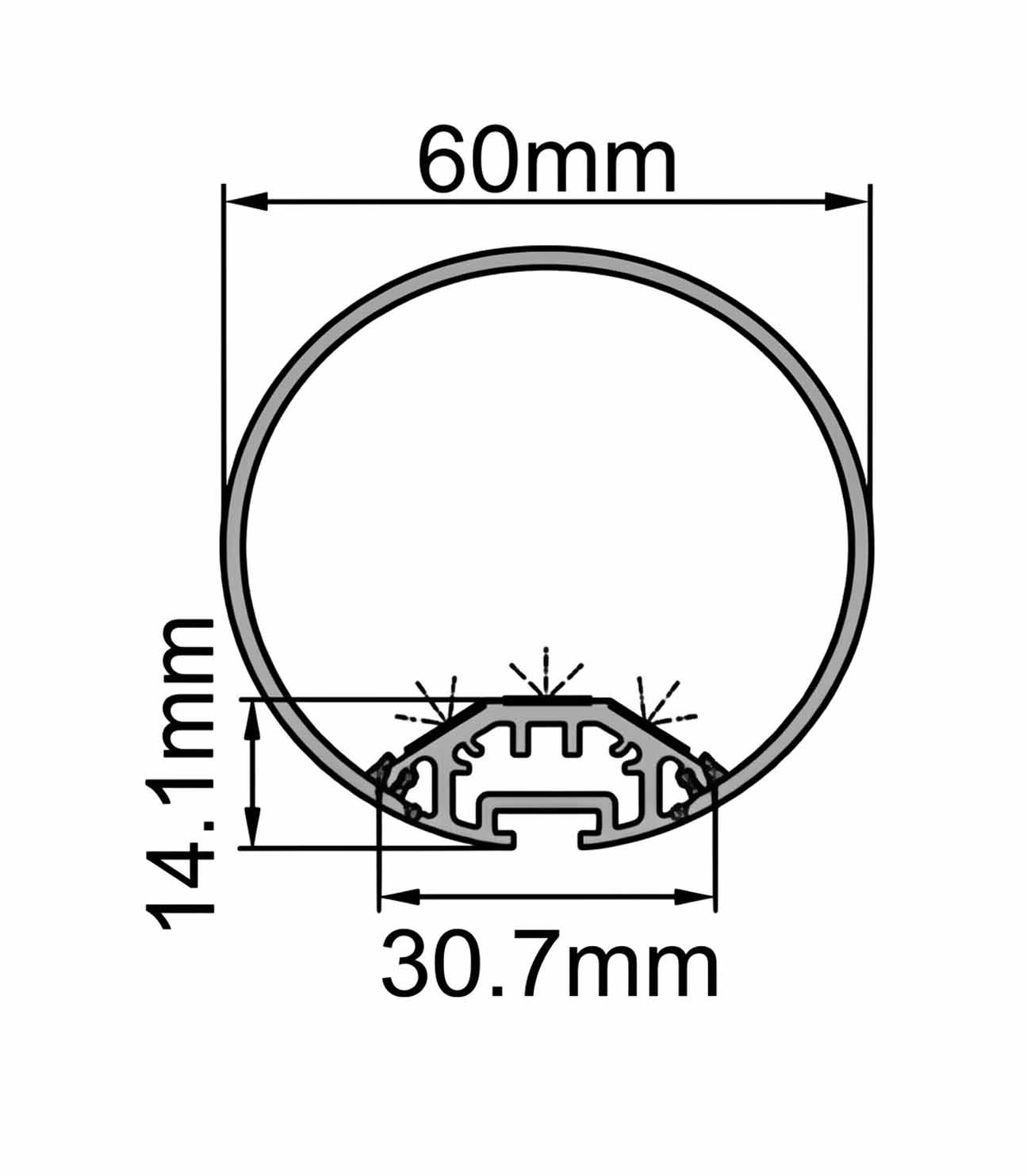

|Dimensions (mm)
D60
|Power (Watt)
4.8W ~ 19.6W
Reference Notes
Reference design basis adapted from existing SPARTA SPRL3 datasheet structure.
