Download Datasheet

EDGE

Trimless COB Recessed Downlight

8W
Cut-out50 mm
Diameter62 mm
Height70 mm
Luminous Flux (lm)~1050
Efficiency131 lm/W @ source
COB Size (mm)13.35×13.35
Mounting TypeTrimless
10W / 12W / 15W
Cut-out75 mm
Diameter81 mm
Height83 mm
Luminous Flux (lm)~1300–2000
Efficiency127–131 lm/W @ source
COB Size (mm)13.35 / 15.85
Mounting TypeTrimless / Trim
Power
8W
10W / 12W / 15W
Cut-out
50 mm
75 mm
Diameter
62 mm
81 mm
Height
70 mm
83 mm
Luminous Flux(lm)
~1050
~1300–2000
Efficiency
131 lm/W @ source
127–131 lm/W @ source
COB Size (mm)
13.35×13.35
13.35×15.85
Mounting Type
Trimless
Trimless / Trim
Beam Angles
10° / 15° / 24° / 36° / 55°
CRI
≥90
Adjustable
Yes
Dimming
(On/Off) / DALI / 1-10V / 0-10V / Phase Cut (optional)
Voltage
220-240V AC
IP Rating
IP20
Material
Die-cast aluminum

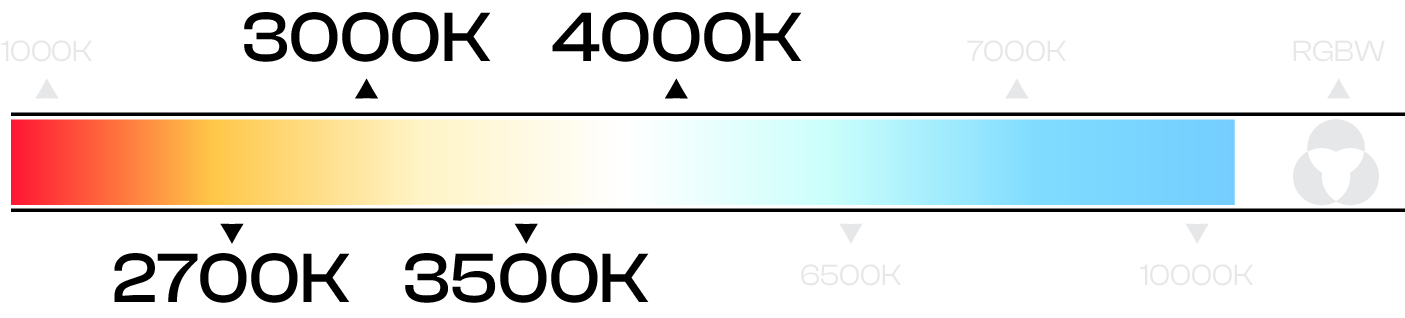

CCT Range
Edge downlight colour temperature (CCT) options
LED Brand
Osram LED chip logo
Lifetime
50,000 hours
Warranty
5 Years

Description

Architectural trimless recessed COB downlight designed for seamless ceiling integration, offering adjustable lighting direction and flexible configuration in wattage, optics, dimming systems, and mounting options (Trimless / Trim).

Applications

• High-end residential interiors
• Retail & display areas
• Galleries & museums
• Hospitality projects
• Architectural spaces

Key Feature

  • • Trimless Recessed Design

    for seamless ceiling finish

  • • Adjustable light

    Direction for accent lighting

  • • Compatible with

    TCI / Tridonic / Philips drivers

  • • Optimized aluminum

    heat sink

  • • High efficiency

    COB LED (Osram)

  • • High CRI

    ≥90

  • • Multiple beam angles

    (55–°10°)
