Beam Angle
120°
Life time
>50,000 hours
Length per Reel
5 M
Cutting interval
25 mm
Input Voltage
DC12V / 24V
LED Type
SMD 2835
LED Density
120 LEDs/M
Working Temperature
0°C to +40°C
Warranty
5 Years
| STRP-SMD4.8W | STRP-SMD9.6W | STRP-SMD14.4W | |
|---|---|---|---|
| Power | 4.8W/M | 9.6W/M | 14.4W/M |
| CRI | >80 | >90 | >90 |
| Luminous Flux | 456 lm/M | 920-1000 lm/M | 1370-1440 lm/M |
| CCT Options |
 |
 |
 |
| Strip Width | 8 mm | 8 mm | 10 mm |
| IP | IP67 | IP67 | IP67 |
STRP-SMD4.8W
Power4.8W/M
CRI>80
Luminous Flux456 lm/M
CCT Options
Strip Width8 mm
IPIP67
STRP-SMD9.6W
Power9.6W/M
CRI>90
Luminous Flux920-1000 lm/M
CCT Options
Strip Width8 mm
IPIP67
STRP-SMD14.4W
Power14.4W/M
CRI>90
Luminous Flux1370-1440 lm/M
CCT Options
Strip Width10 mm
IPIP67

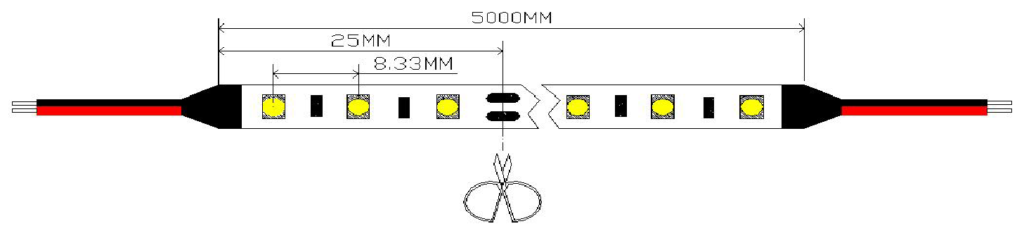

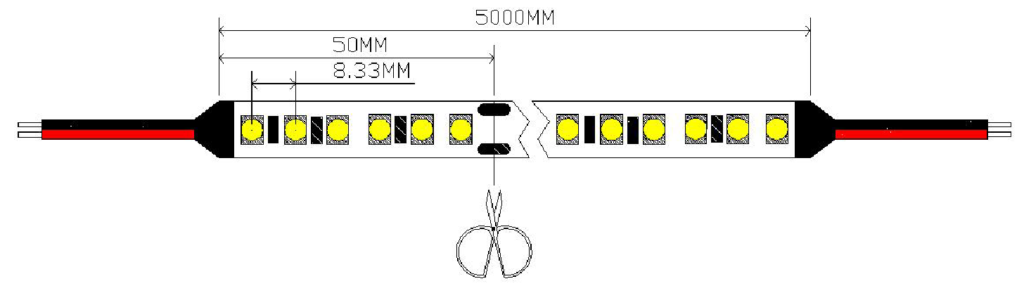

Dimension(unit: mm):
DC12V
DC24V
Description
High-effciency SMD LED strip with IP67 protection, delivering uniform illumination for indoor and outdoor linear lighting applications.
Ideal Applications
• Cove lighting in bathrooms and kitchens
• Outdoor sheltered areas and façade
detailing
• Signage and light box illumination
• Retail display and shelf lighting
• Architectural accent lighting
