SPRL0

Inground Linear Light

Beam Angle

120°

20

Life time

50,000 Hours

Warranty

5 Years

Shape

Rectangular

CRI

>80/90

Indicative Intensity Distribution Curve Linear Light 40 mm | Opal PMMA | 120° Beam 0°

ـــــــــــ C0-C180 —- C90-C270

Voltage

220~240V

Diffuser

Opal PMMA

Efficiency

Up to 170 lumen/Watt
from the light source

Dimming

On/Off, DALI, Phase Cut, 0-10V, 1-10V

Body Material

Extruded aluminum

Finishing Colors

White

Black

Silver

Mounting

CCT Range

Description

Rigid inground linear LED luminaire designed for durable outdoor installation, delivering uniform illumination with high resistance to environmental conditions.

Ideal Applications

• Pathways and walkways
• Landscape and outdoor areas
• Building façades and perimeter lighting
• Driveways and public spaces
• Architectural outdoor lighting designs
• Commercial and hospitality exterior
environments

Key Feature

• Durable construction
with weatherproof protection (IP/IK rated)
• Inground installation
with high mechanical strength and load resistance
• Uniform glare controlled
illumination with protected optical system

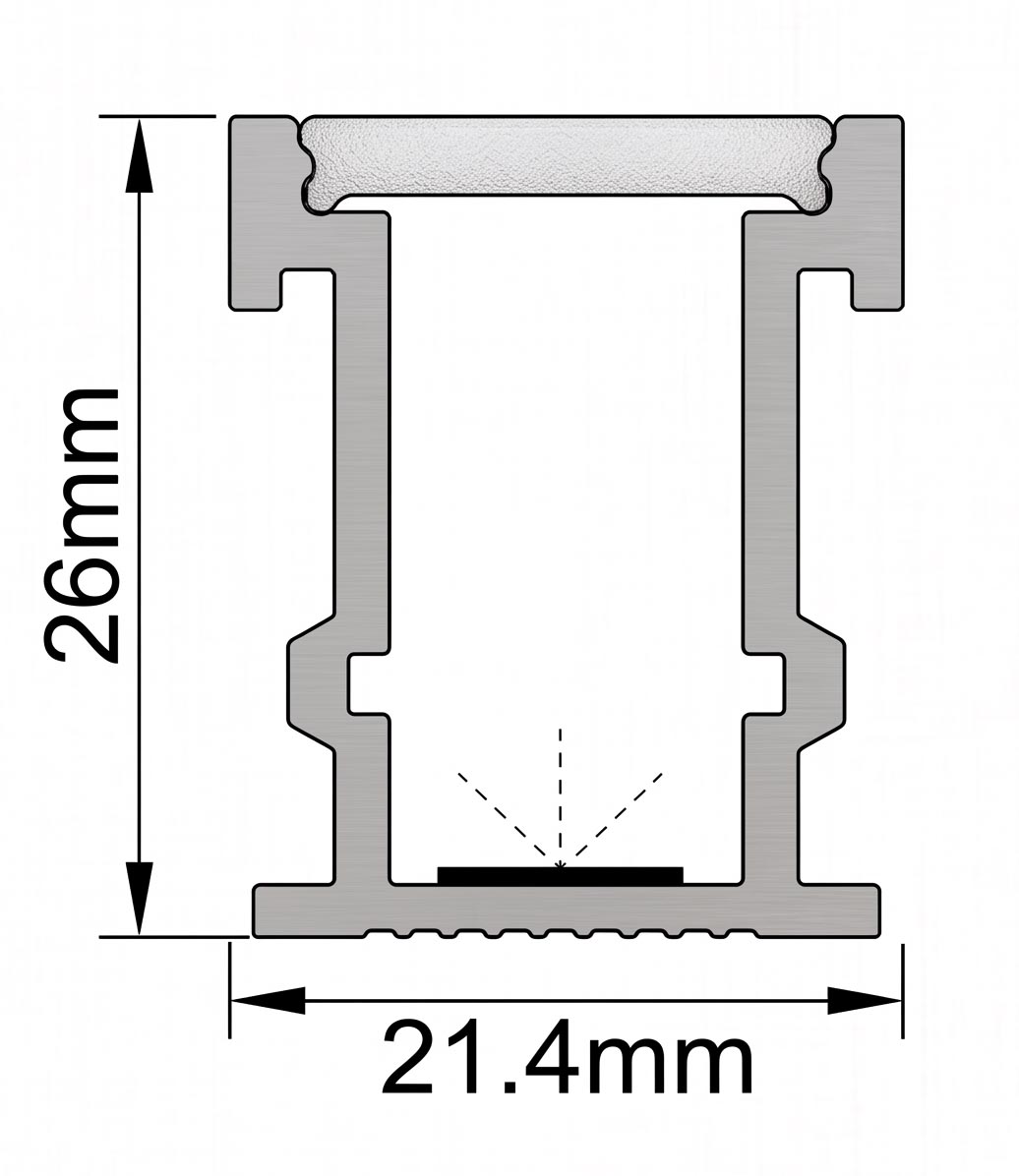

Dimension and Capacity

|Dimensions (mm)

21.4 X 26

|Power (Watt)

10W

|Driver Location
