JUMAN
Surface-mounted Glare Downlight
Technical Specifications
Light Source & Performance
LED Type
COB/SMD
COB Options
TCI/Samsung
SMD Option
Osram
Luminous Efficiency
135-170 Im/W
CRI
80/90

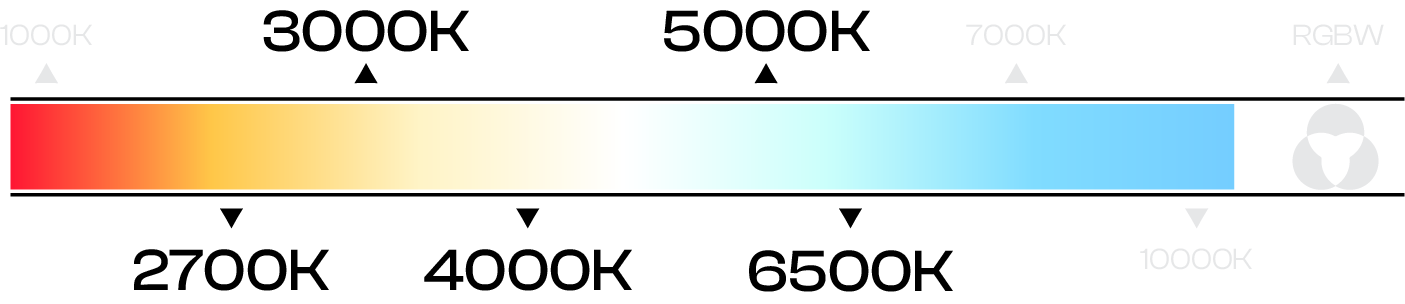

CCT Range
2700K-6500K
Mechanical & Construction
Mounting Type
Surface mounted
Body Material
Die-cast aluminum
Finish Options
White/Black/Black + White
Product Shape
Cylindrical
Optical System
Beam Angle
24*/36*/60*
Optical Design
Deep anti-glare reflector
Electrical
Driver Compatibility
Tridonic
Input Voltage
220–240V AC
Protection & Reliability
IP Ratingy
IP65
Lifetime
50,000 hours
Warranty
5 Years
Product Range
Model
JUMAN-15/18
Power
15-18W
Size
Ø80 × 90 mm
Beam Angle
24° / 36° / 60°
Finish Options
White/Black/Black + White
Configuration Options
Power Selection
15W
18W
LED Chip Options
COB: TCI / Samsungy
SMD: Osram
Finish Options
White
Black
Black body +
White trim / interior
Beam Angle Selection
24° – Accent lightinge
36° – General accent lightingk
60° – Wider general lighting
CCT Options
Driver Platforms
Description
Surface-mounted cylindrical downlight designed for architectural ceiling applications, combining IP65 protection, anti-glare optics, and flexible customization in LED chip, CCT, beam angle, finish, and driver system.
Applications
• Bathrooms and humid areas
• Corridors and entrances
• Hospitality interiors
• Residential ceiling lighting
• Retail and commercial spaces
• Covered outdoor / semi-outdoor areas
Key Feature
Notes
• No ceiling cut-out is required because this is a surface-mounted downlight.
• UGR value is estimated and should be confirmed if required for consultant approval.
• Final lumen output depends on selected wattage, LED chip, CCT, CRI, and driver configuration.
