Lifetime
50,000h
Warranty
5Years
IP rating
IP65
TECHNICAL SPECIFICATIONS
Product Table
| Code | Bezel | Body size |
|---|---|---|
| AB-BLK-LUNA-D316-WHT | White | Ø316 × 83 mm |
| AB-BLK-LUNA-D316-BK | Black | Ø316 × 83 mm |
Common Specifications
| Field | Value |
|---|---|
| Input voltage | AC 220-240 V, 50/60 Hz |
| Power (selectable) | 9 / 14 / 18 W |
| CCT (3CCT switch) | 3000 K / 4000 K (default) / 6000 K |
| Efficacy | 100 lm/W |
| Beam angle | 120° |
| CRI | Ra > 80 |
| SDCM | <6 |
| Power factor | PF>0.5 |
| Ingress protection | IP65 |
| Impact resistance | IK10 |
| Body size | Ø316 × 83 mm |
| LED | BMTC . SMD 2835 |
| Diffuser | Impact-resistant opal polycarbonate, side-release buttons |
| Housing / material | White . PC cover + PC body |
| Bezel colour | White / Black |
| Glow-wire temperature | 850 °C |
| Operating temperature | -10 to 45 °C |
| Driver | Keysing Star - non-isolated |
| Sensor | Built-in Dacang On/Off sensor (standard) |
| Mounting | Surface-mounted or suspended |
| Lifetime | 50,000 h |
| Warranty | 5 years |
| Certification | RoHS . CE |
| Packing | 10 pcs/CTN (inner box 355 × 87 × 356 mm . master 465 × 374 × 373 mm . net 7 kg / gross 9 kg) |
Selectable output (one unit, switch-set)
| Power (selectable) | Luminous flux (calculated @ 100 lm/W) |
|---|---|
| 9 W | 900 lm |
| 14 W | 1400 lm |
| 18 W | 1800 lm |

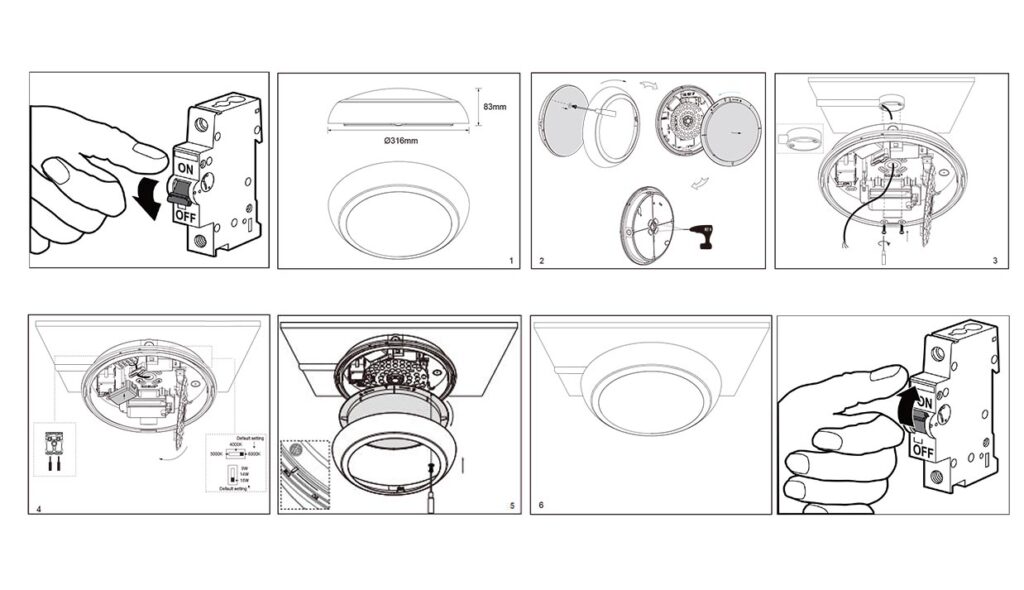

INSTALLATION
• Surface-mounted or suspended — ceiling or wall.
• Side-release diffuser buttons open the opal diffuser for quick installation — no tools on the diffuser.
• Power selection (9 / 14 / 18 W) and CCT selection (3000 / 4000 / 6000 K) are made on the unit at installation; 4000 K is the factory default.
• The Dacang On/Off sensor is built in as standard — no separate module to order.
• IP65 and IK10 rated — suitable for wet, dusty and high-traffic locations. Operating −10 to 45 °C.
• Connect to AC 220–240 V, 50/60 Hz.
Description
Luna is ABTech’s round surface- or suspended mounted LED bulkhead for wet, dusty and high-traffic areas — IP65 and IK10 in an impact-resistant opal polycarbonate diffuser with a PC housing. A single φ316 mm luminaire covers three power levels (9 / 14 / 18 W) and three colour temperatures (3000 / 4000 / 6000 K), both switchable on the unit, at 100 lm/W. It comes with an integrated Dacang On/Off sensor as standard, side-release diffuser buttons for quick install, and a 5-year warranty. Ideal for garages, corridors, factories and workshops.
Applications
• Garages and car parks
• Corridors and circulation areas • Factories and workshops
• Wet, dusty and high-traffic areas indoors and out.
