Beam Angle
120°
IP
20
Life time
5 Years
Diffuser
opal - PMMA
CRI
>80/90
NILE Indicative Intensity Distribution Curve Oval Luminaire | Opal PMMA | 120° Beam
ـــــــــــ C0-C180 —- C90-C270
Voltage
220~240V
Efficiency
Up to 170 lumen/Watt
from the light source
from the light source
Dimming
On/Off, DALI, Phase Cut, 0-10V, 1-10V
Body Material
Extruded aluminum
Finishing Colors
White
Black
Silver
Mounting
CCT Range
Description
Side-bend linear lighting system enabling seamless curved forms with continuous, glare-free illumination for architectural and feature lighting applications.
Ideal Applications
• Conference tables and boardroom feature lighting
• Reception areas and statement ceilings
• Commercial offices and creative workspaces
• Hospitality and premium interior environments
• Corridors and transitional spaces
• Large architectural ceilings and
design-focused installations
Key Feature

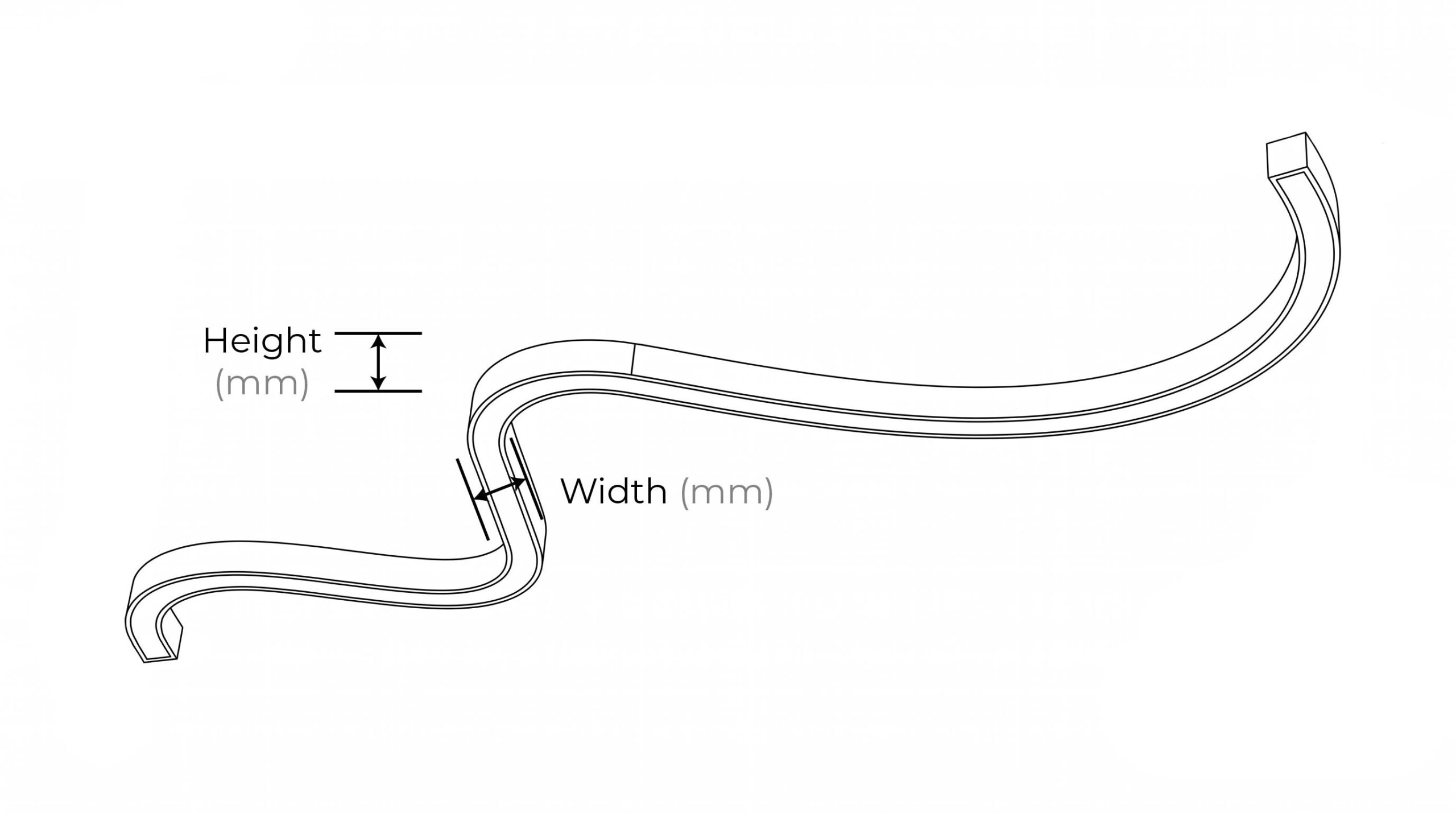

Dimension and Capacity
| Height (mm) | Width (mm) | Power (Watt) | Driver Location |
|---|---|---|---|
| 35 | 30~180 | 10~280 | External |
| 40 | 30~180 | 10~280 | External |
| 60 | 30~180 | 10~280 | External |
| 68 | 30~180 | 10~280 | External |
| 80 | 30~180 | 10~280 | External / Internal |
| 118 | 30~180 | 10~280 | External / Internal |
Height (mm)
35
Driver LocationExternal
Width (mm)30~180
Power (Watt)10~280
Height (mm)
40
Driver LocationExternal
Width (mm)30~180
Power (Watt)10~280
Height (mm)
60
Driver LocationExternal
Width (mm)30~180
Power (Watt)10~280
Height (mm)
68
Driver LocationExternal
Width (mm)30~180
Power (Watt)10~280
Height (mm)
80
Driver LocationExternal / Internal
Width (mm)30~180
Power (Watt)10~280
Height (mm)
118
Driver LocationExternal / Internal
Width (mm)30~180
Power (Watt)10~280
Shapes

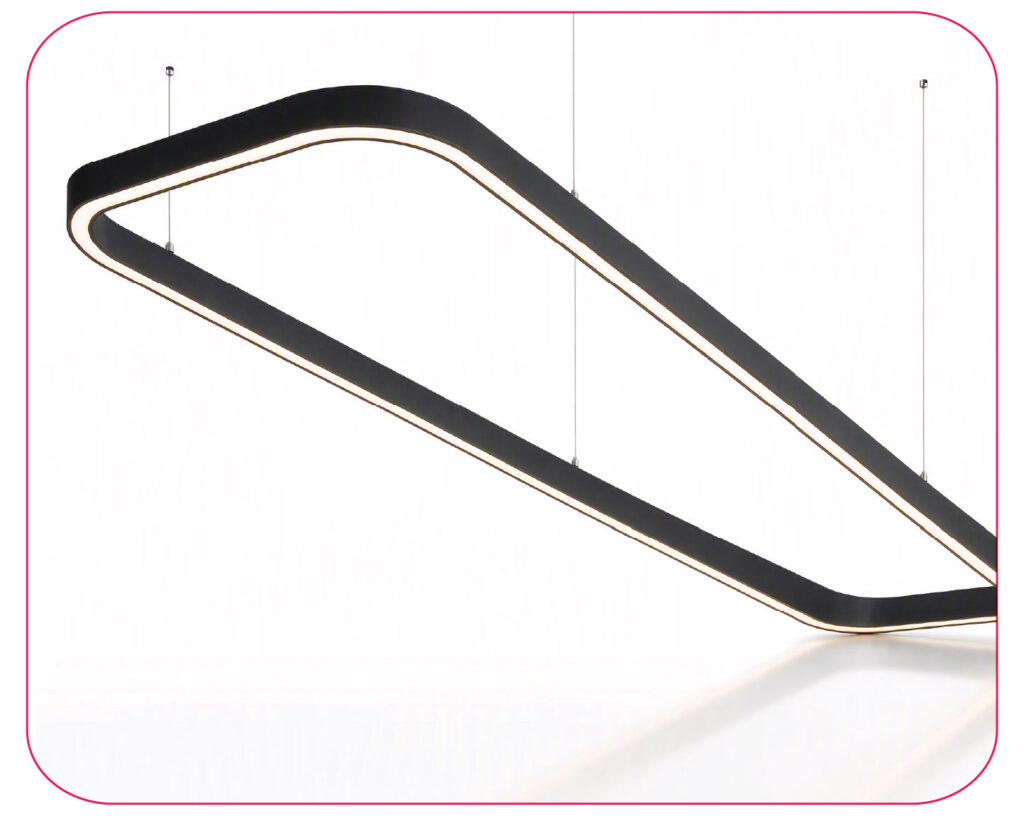

NILL3

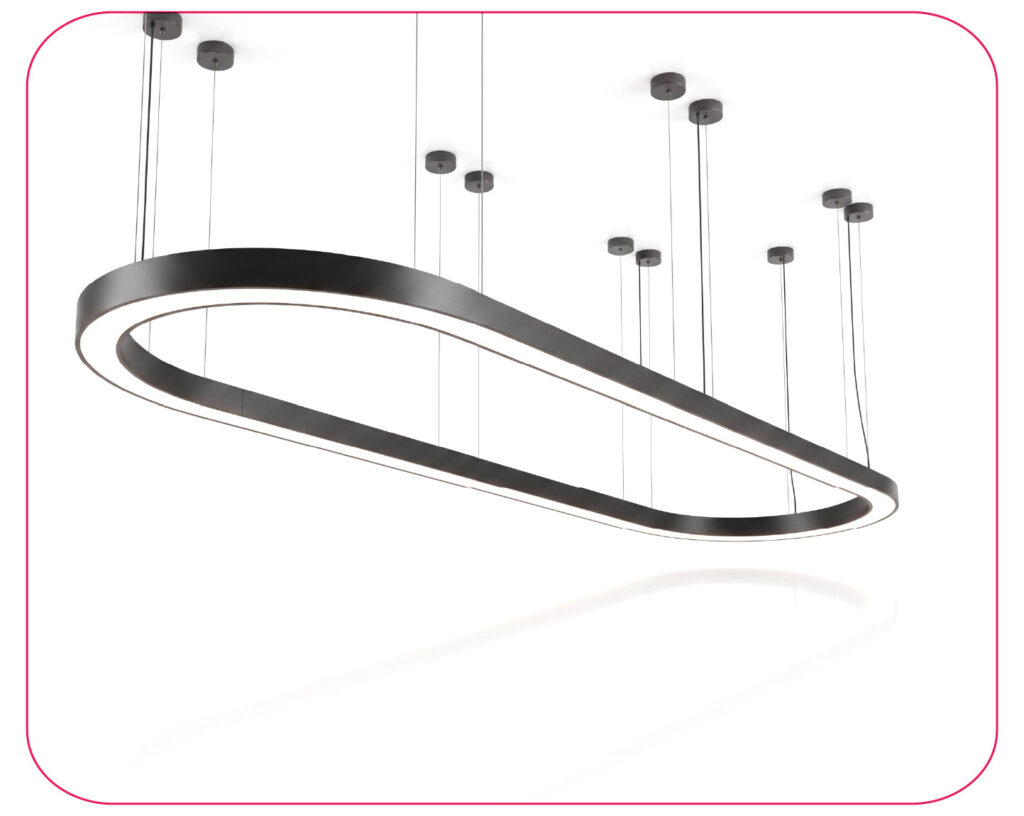

NILLO3

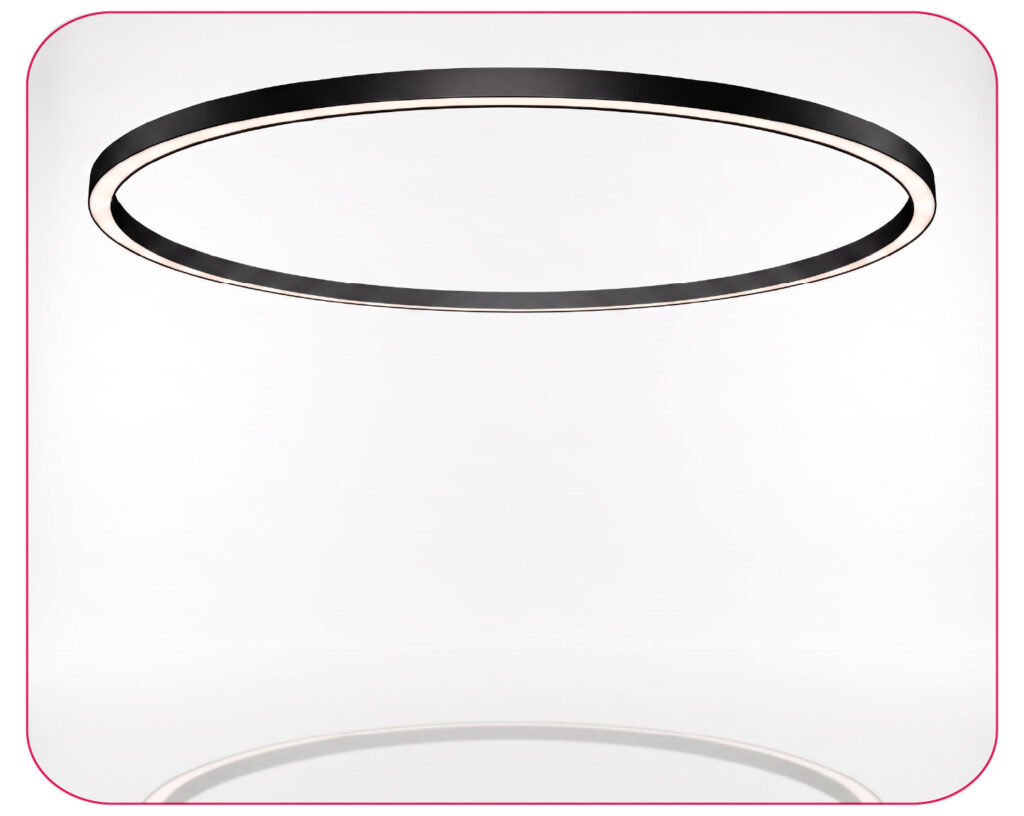

NILO3

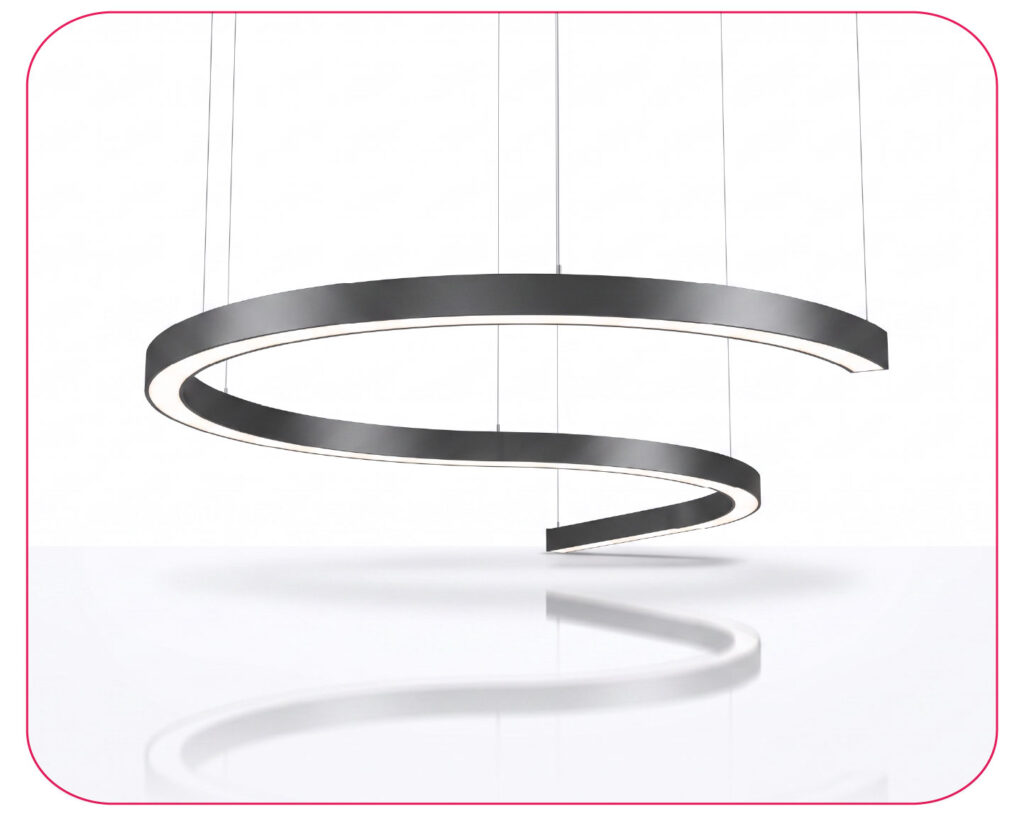

NILS3
