IP
20
Life time
50,000h
Warranty
5 years
Technical Specifications
| Field | Value |
|---|---|
| Model | TRS-60 |
| Family | SPARTA - linear light profile |
| Section | Round |

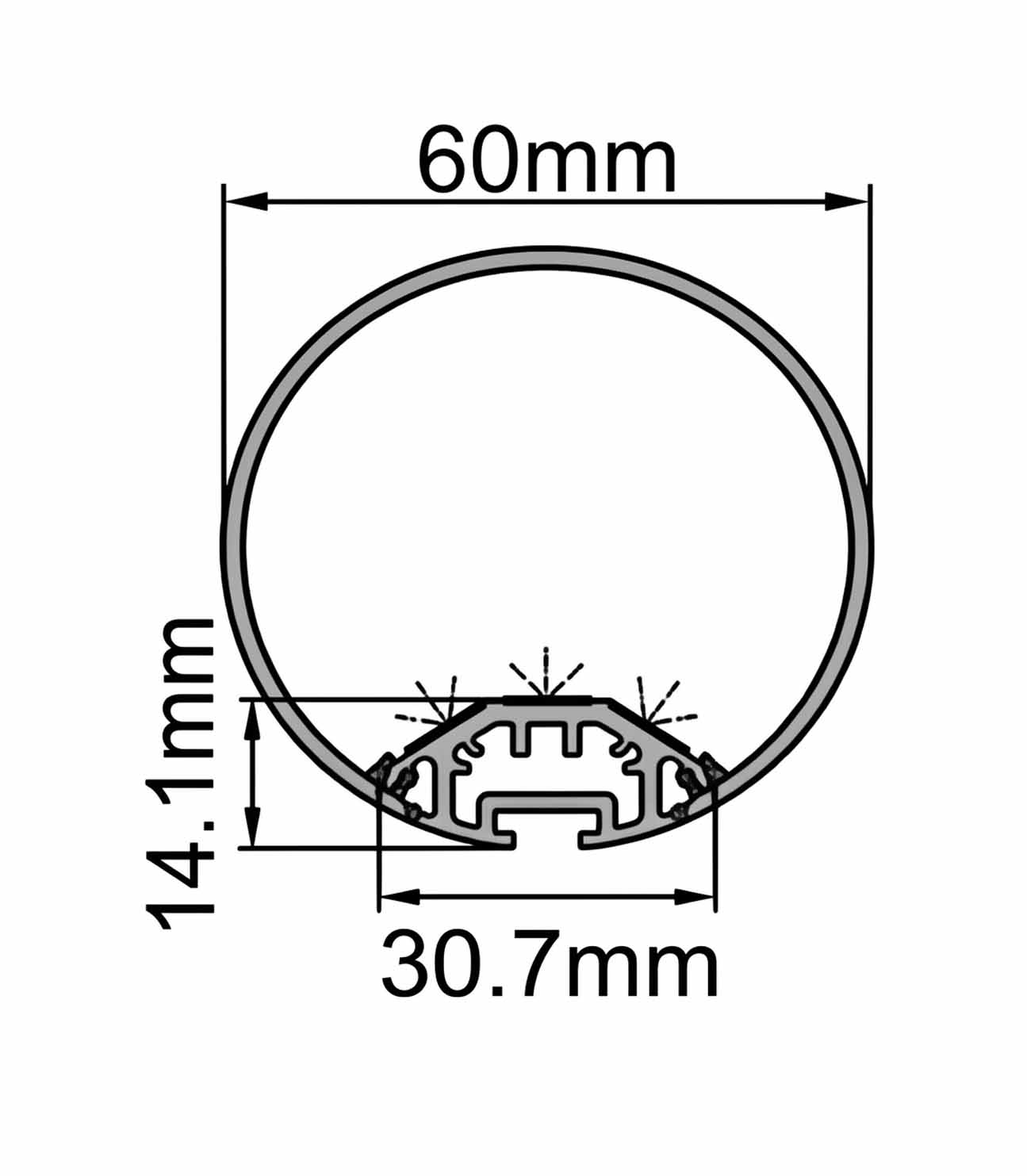

| Outer diameter | Ø60.0 mm |
| Body material | 6063 T3-T8 aluminium alloy |
| Finish | Anodized - white, as shown in the supplied images |
| Cover | PC, frosted |
| Lengths | 1 m . 2 m . 3 m . 4 m - customized length available |
| End caps | 2 |
| Installation | Suspended |
Description
A round Ø60 mm suspended profile for LED strip, in the SPARTA linear light family. The extruded 6063 aluminium body carries an internal platform for LED strips under a
frosted PC cover, closing with two end caps — one with a wire hole for the feed — to hang
as a clean tubular light line. Stocked in 1 m to 4 m lengths, with customized lengths
available.
Design Capability
• Commercial lighting
• Indoor lighting
• Decorative lighting
• Suspended tubular strip runs in hospitality, retail and residential interiors.
Key Feature
INSTALLATION
• Suspended installation. One end cap carries a wire hole for the suspension/feed; the other
is closed. Install clips are not applicable to this profile.
• The frosted PC cover closes the aperture; fit the two end caps to finish the run.
